500A Series
500A
|
MODEL
|
RIVET
CAPACITY DIAMETER |
STANDARD
YOKE DIMENSIONS |
MAX FORCE with 90 PSI (6.21 BAR) AIR PRESSURE PSI (KN) |
MOVING JAW |
OVERALL LENGTH | WEIGHT WITH JAW (LBS) |
||||
|
ALUM
|
STEEL
|
REACH
|
CLOSED HEIGHT
|
MAX
TRAVEL |
STROKE
MAX POWER |
|||||
| 500A-570 | 1/4 (6.3) |
3/16 (4.8) |
3 (76.2) |
7/8 (22.2) |
10,000 (44.48) |
1 3/16 (30.16) |
5/64 (1.95) |
24" (501.6) |
11 1/2 (5.2) |
|
| 500A-572 | 3/16 (4.8) |
5/32 (4.0) |
5 (127) |
7/8 (22.2) |
6,900 (30.69) |
1 3/8 (35) |
1/8 (3.15) |
25" (635) |
12 (5.5) |
|
| 500A-574 | 5/32 (4.0) |
1/8 (3.1) |
7 (178) |
7/8 (22.2) |
4,500 (20.02) |
1 13/16 (46) |
5/32 (3.95) |
27" (603.2) |
12 1/2 (5.7) |
|
*All pressures are load cell tested not calculated.
Jaws
|
JAWS |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
570 (3/16) |
3 |
7/8 |
2-3/8 |
2-1/4 |
1/2 |
1-1/8 |
7/16 |
5-1/2 |
5-7/16 |
|
572 (3/16) |
5 |
7/8 |
2-5/16 |
2-1/4 |
1/2 |
1-1/8 |
7/16 |
6-9/32 |
6 |
|
574 (3/16) |
7 |
7/8+ |
2-3/16 |
2-1/4 |
1/2 |
1-1/8 |
7/16 |
6-7/8 |
6-3/8 |

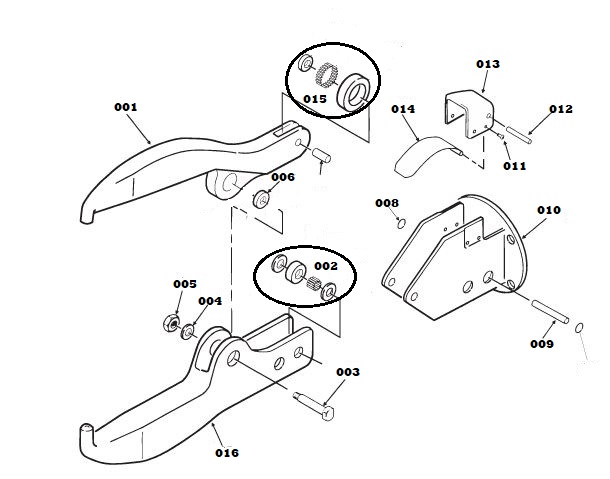

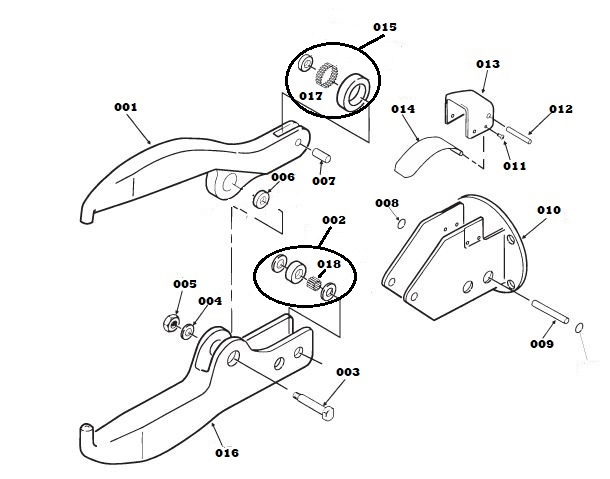

500A Head Assembly
ATLANTIC AIR TOOL COMPANY, INC.
MODEL # 500A SQUEEZE RIVETER
ITEM# AATC PART# HI-SHEAR# DESCRIPTION
001 501 17317 Moving jaw 3” (3/16” set hole)
001 502 17320 Moving jaw 3” (1/4” set hole)
001 503 17285 Moving jaw 5” (3/16” set hole)
001 504 17289 Moving jaw 5” (1/4” set hole)
001 505 19001 Moving jaw 7” (3/16” set hole)
001 506 19009 Moving jaw 7” (1/4” set hole)
002 507 Stationary roller assembly (roller, needles, washers)
003 508 482 Pivot bolt
004 509 177 Washer
005 510 184 Nut
006 511 480 Pivot bearing (bushing)
007 512 19237 End roller bearing shaft
008 513 3363 Retaining ring
009 514 471 Bearing shaft (2 required per tool)
010 515 17286 “A” frame
011 516 6475 Screw (4 required per tool)
012 517 16344 Spring pin
013 518 17281 Cover
014 519 16333 Return spring
015 520 End bearing assembly (moving jaw)
016 521 17318 Stationary jaw 3” (3/16” set hole)
016 522 17319 Stationary jaw 3” (1/4” set hole)
016 523 17284 Stationary jaw 5” (3/16” set hole)
016 524 17288 Stationary jaw 5” (1/4” set hole)
016 525 19002 Stationary jaw 7” (3/16” set hole)
016 526 19011 Stationary jaw 7” (1/4” set hole)
ATLANTIC AIR TOOL COMPANY, INC.
017 527 3100 Needle rollers
018 528 626 Needle rollers
ATLANTIC AIR TOOL COMPANY, INC.
MODEL # 500A SQUEEZE RIVETER
AATC Model #500A-570 (3” reach, 3/16” set hole).
AATC Model #500A-571 (3” reach, ¼” set hole).
AATC Model #500A-572 (5” reach, 3/16: set hole).
AATC Model #500A-573 (5” reach, ¼” set hole).
AATC Model #500A-574 (7” reach, 3/16” set hole).
AATC Model #500A-575 (7” reach, ¼” set hole).
ALLIGATOR JAW ASSEMBLIES
Includes all bearing and hardware necessary for assembling into AATC Model # 500A squeeze riveter.
AATC JAW ASSEMBLY NUMBER SET HOLE SIZE JAW REACH
570 3/16” 3”
571 1/4” 3”
572 3/16” 5”
573 1/4" 5”
574 3/16” 7”
575 1/4” 7”

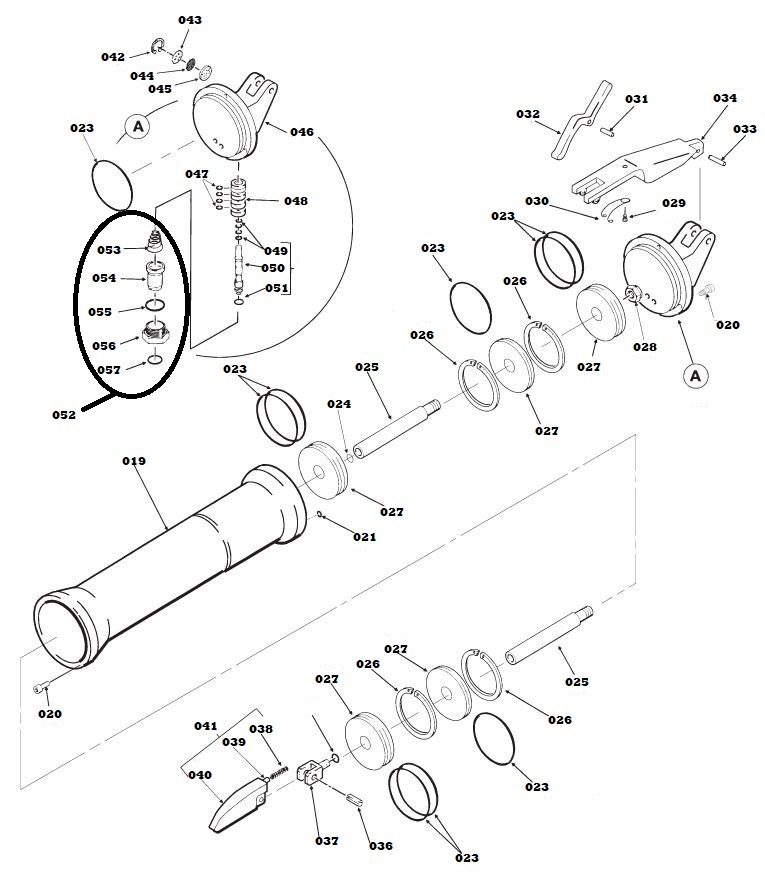

500A Housing Assembly
ATLANTIC AIR TOOL COMPANY, INC.
MODEL # 500A SQUEEZE RIVETER
ITEM# AATC PART# HI-SHEAR# DESCRIPTION
019 529 16596 Cylinder
020 530 16804 Screw (8 required per tool)
021 531 16794 “O” ring
022 532 16798 Piston
023 533 3090 “O” ring (9 required per tool)
024 534 2082 “O” ring
025 535 16749 Piston shaft
026 536 16803 Retaining rings (4 required per tool)
027 537 16792 Separator
028 538 3122 Piston shaft nut
029 539 7821 Screw
030 540 2314 Safety spring
031 541 16592 Pin
032 542 16835 Lever
033 543 17018 Pin
034 544 16837 Lever handle
035 545 491 “O” ring
036 546 19244 Rivet
037 547 16801 Fork
038 548 16997 Spring
039 549 1449 Pin
040 550 17299 Wedge
041 551 17202 Wedge assembly
042 552 3079 Retaining ring
043 553 3085 Screen (brass)
044 554 3087 Screen
045 555 3088 Muffler
046 556 16600 Back head (bare)
047 557 2082 “O” ring (4 required per tool)
048 558 3083 Valve bushing
049 559 3072 “O” ring (4 required per tool)
050 560 3084 Throttle valve
051 561 3078 “O” ring
052 562 Swivel assembly
053 563 2161 Swivel spring
054 564 16747 Swivel
055 565 2786 “O” ring
056 566 3095 Swivel nut
057 567 514 “O” ring
